VARIO30-06 ACDE-9/U9
VARIO30-06 – Recessed Aluminium LED Profile for Architectural Lighting
VARIO30-06 ACDE-9/U9 by TOPMET Light is a recessed aluminium LED profile from the modular VARIO30 family, designed for functional and architectural lighting. Its wide LED mounting area and practical recessed construction make it suitable for creating integrated linear luminaires in residential and commercial interiors.
The profile accommodates LED strips up to 30 mm wide or compatible LED modules, offering flexibility when selecting light sources for different lighting requirements.
Recessed Installation with a Clean Finish
Unlike trimless profiles, VARIO30-06 features mounting flanges that cover the edges of the prepared recess, helping conceal minor surface imperfections and simplify installation.

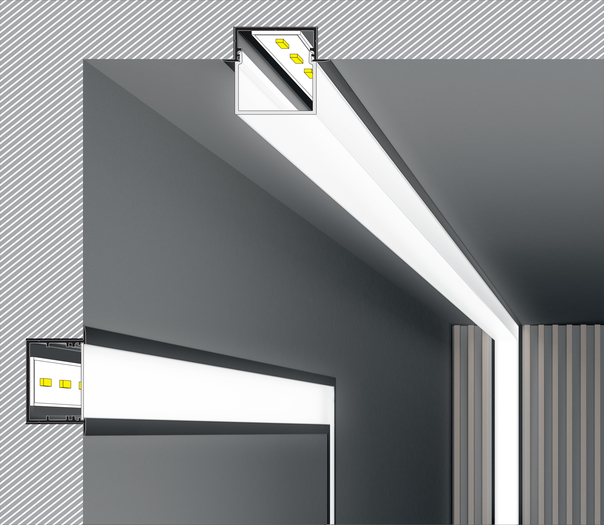

Its relatively shallow construction makes it suitable for ceilings, walls and thicker furniture panels where integrated lighting is required.

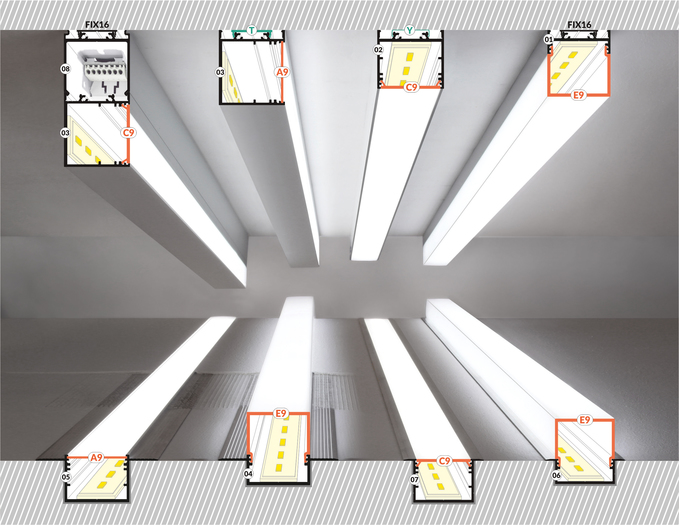

As part of the VARIO30 system, it complements the deeper recessed VARIO30-07 and the trimless VARIO30-04 and VARIO30-05 profiles.
Four Diffuser Types for Different Lighting Effects
The VARIO30-06 recessed LED profile supports four system diffuser types:
- A9 slide-in diffuser – transparent (95%), frosted (90%) and opal (60%).
C9 click-in diffuser – transparent (95%), opal (70%) and black (40%).
D9 click-in diffuser – rounded opal version (70%).
E9 click-in diffuser – rectangular opal version (70%).

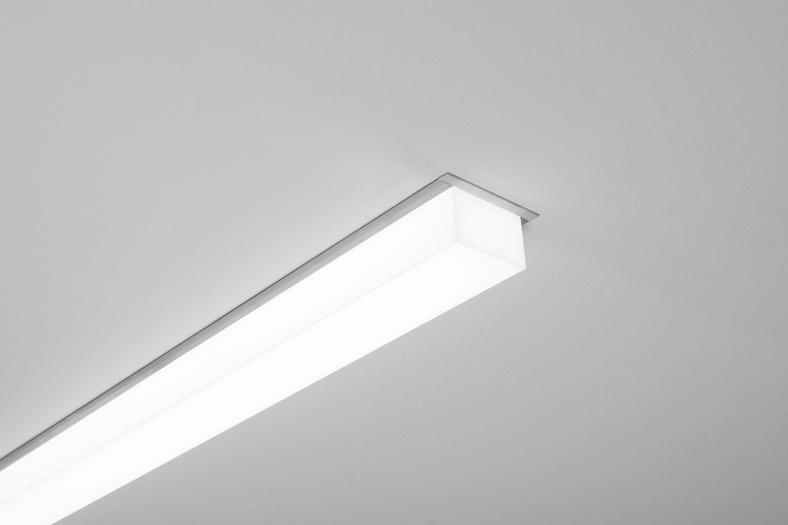

These options allow different lighting effects, from high light transmission to softer, diffused illumination. The raised D9 and E9 diffusers also provide distinctive decorative finishes.
Mounting Accessories and Available Finishes

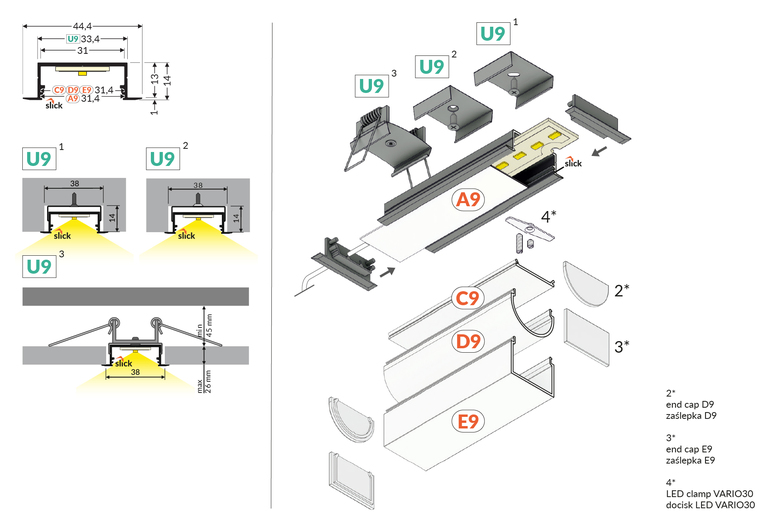

VARIO30-06 is compatible with U9 stainless steel mounting plates, available with slotted or countersunk holes. U9 spring mounting clips provide an additional option for installation in plasterboard surfaces and facilitate removal when required.
Dedicated end caps, including versions matched to D9 and E9 diffusers, complete the system.

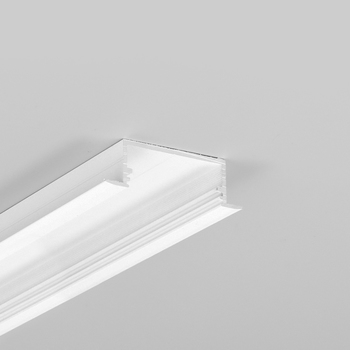

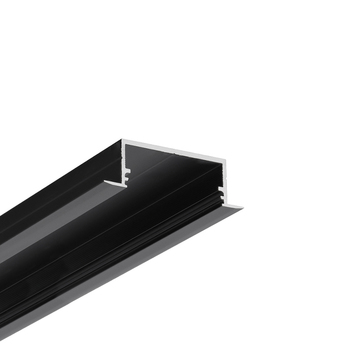

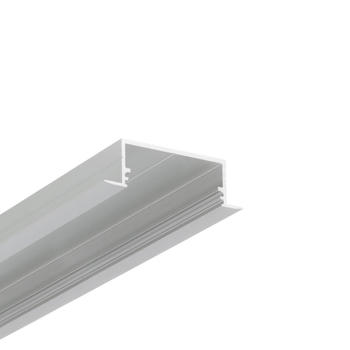

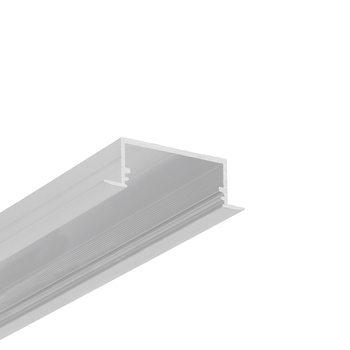

The profile is available in four finishes: raw aluminium, anodised, white painted RAL 9003 and black anodised, with lengths of 1000, 2000, 3000 and 4050 mm.
Combining a spacious LED mounting area, recessed installation and versatile system accessories, VARIO30-06 aluminium LED profile is a practical choice for professional architectural lighting projects.
