VARIO30-02 ACDE-9/TY

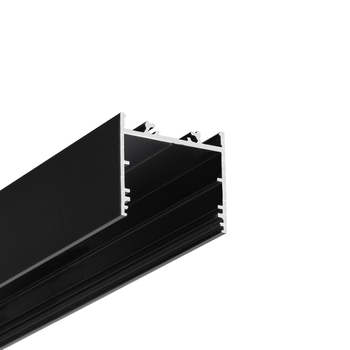

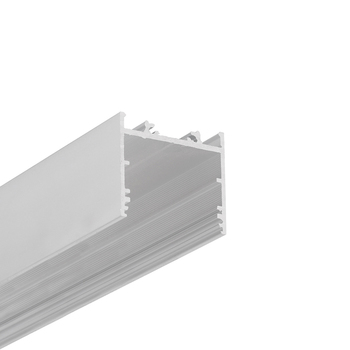

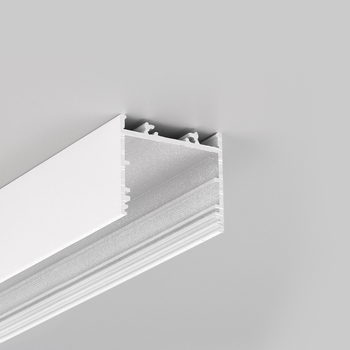

VARIO30-02 – Aluminium LED Profile for Versatile Linear Lighting
VARIO30-02 by TOPMET Light is a deep aluminium LED profile from the modular VARIO30 family, designed for creating modern linear lighting systems. Compared to the shallower VARIO30-01, it offers more space for light sources, accommodating LED strips up to 30 mm wide or compatible LED modules.

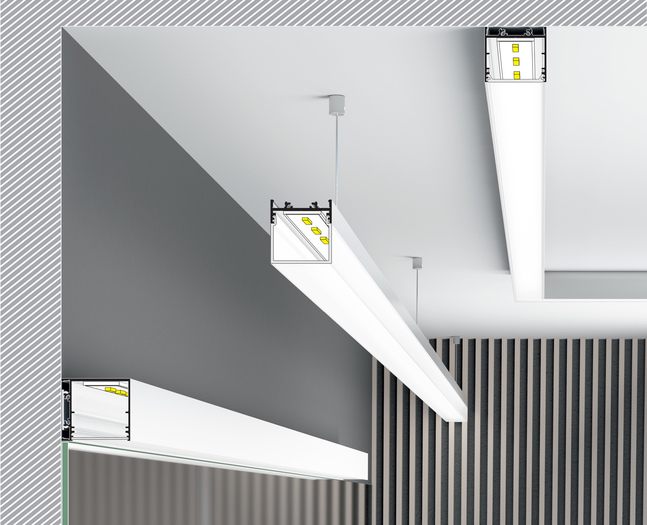

Suitable for surface-mounted and suspended installations, VARIO30-02 provides flexibility for residential, office and commercial lighting projects.
Creative Lighting Configurations
One of the key advantages of the VARIO30-02 LED profile is its compatibility with a wide range of angle connectors.
Connectors are available in 60°, 90°, 120°, 135° and 180° versions, along with bent 90° and 270° connectors for joining profiles in different planes.
These accessories allow the creation of customised geometric lighting arrangements while helping maintain continuous illumination through corners.
Diffusers and Compatible Accessories

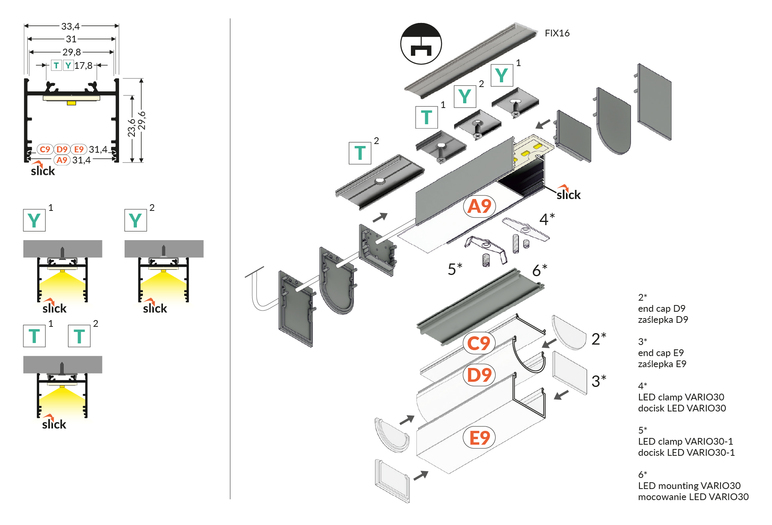

VARIO30-02 supports four diffuser types, also compatible with the COMBO30 system:
- A9 slide-in diffuser – transparent (95%), frosted (90%) and opal (60%).
C9 click-in diffuser – transparent (95%), opal (70%) and black (40%).
D9 click-in diffuser – rounded opal version (70%).
E9 click-in diffuser – rectangular opal version (70%).
Dedicated VARIO30-02 end caps are available for A9 and C9 diffusers, while matching VARIO30-02-D9 and VARIO30-02-E9 end caps complete the rounded and rectangular diffuser configurations.
For installation, the profile is compatible with Y spring mounting clips, including slotted-hole and cone versions, as well as T mounting clips. A longer T connector enables straight connections between profile sections.
Modular Lighting with VARIO30-02
Combining a spacious construction, flexible installation methods and an extensive accessory range, VARIO30-02 aluminium LED profile is a practical solution for customised linear luminaires.
Its compatibility with LED modules and multiple connector types makes it particularly suitable for architectural lighting projects requiring varied shapes and configurations.
