UP-TILE10 A PLUS
UP-TILE10 A PLUS – Aluminium LED Profile for Tiled Stair Lighting

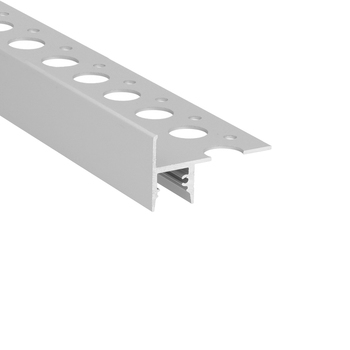

UP-TILE10 A PLUS by TOPMET Light is an aluminium LED profile designed for integration into tiled staircases. Its compact construction allows discreet illumination of stair edges while providing an elegant finishing detail that complements the surrounding tiles.
Compatible with LED strips up to 10 mm wide, UP-TILE10 A PLUS is suitable for decorative staircase lighting in residential and commercial interiors.
Integrated Lighting for Tiled Staircases

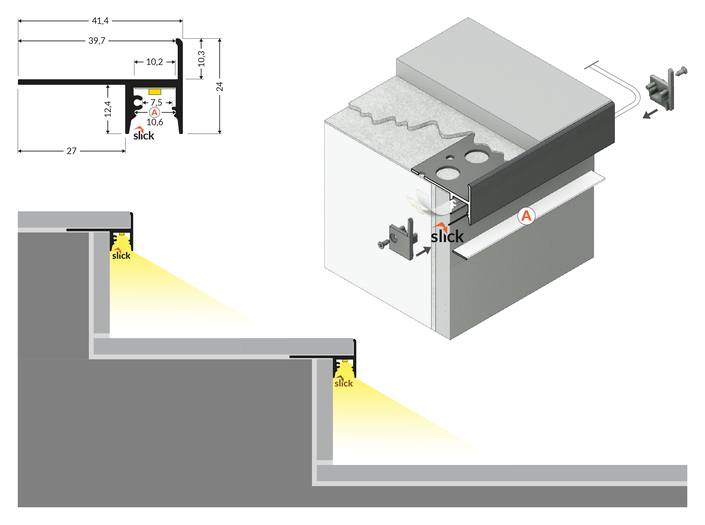

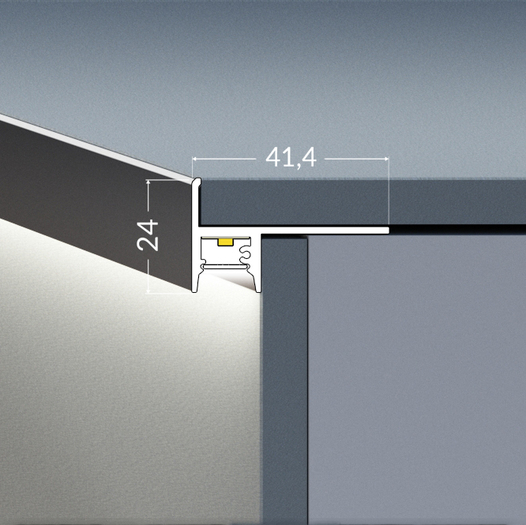

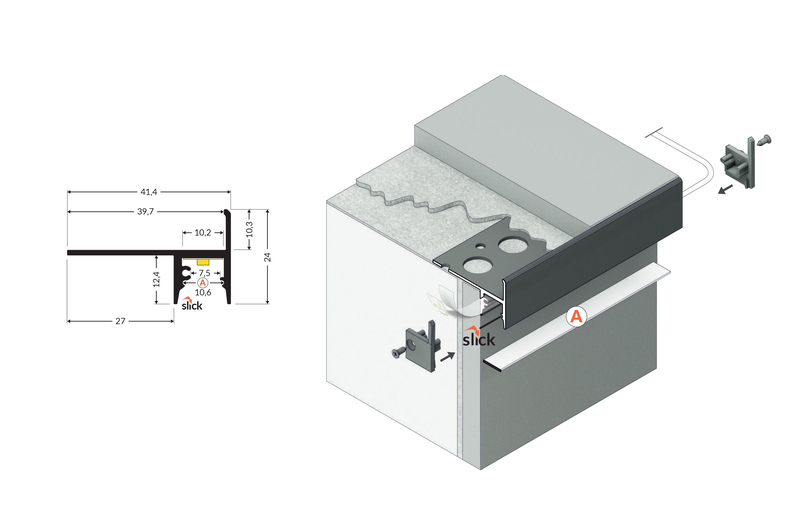

The UP-TILE10 A PLUS stair LED profile is designed for installation along stair edges before the final tile finish is applied. Once the tiles are installed, the profile becomes a discreet architectural detail, providing illumination without dominating the staircase design.
Its smooth front surface creates a neat visual transition between the stair edge and the lighting element.
The PLUS version features a perforated construction, designed to support integration with the surrounding installation materials.

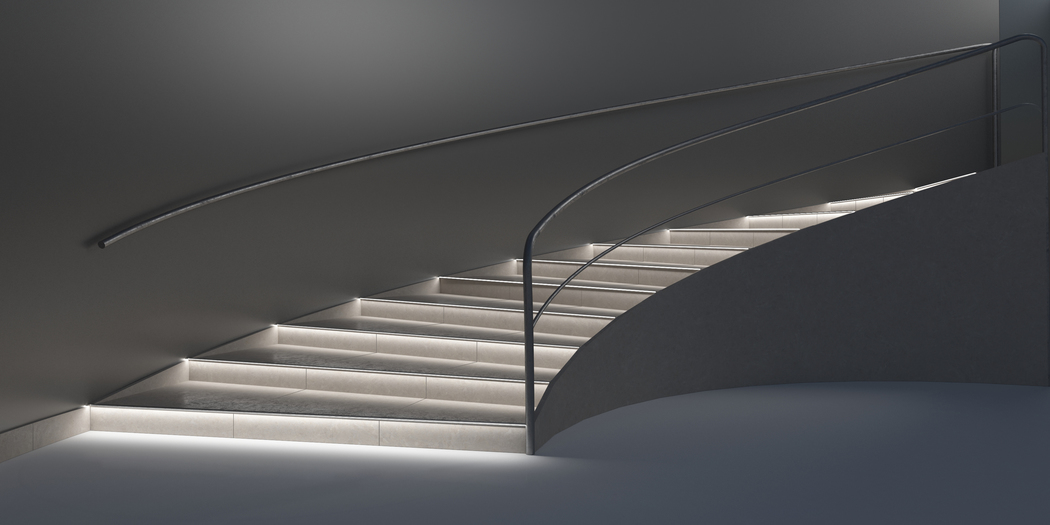

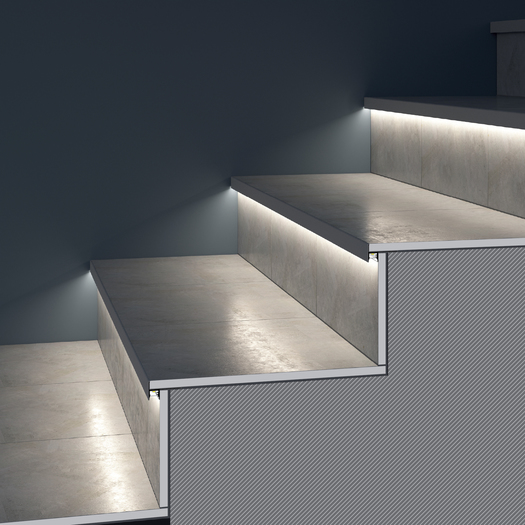

UP-TILE10 A PLUS can be used to highlight individual steps and create a consistent decorative lighting effect along the staircase.
Compatible Diffuser and Accessories
UP-TILE10 A PLUS is compatible with the A slide-in diffuser, available in three versions:
- Transparent – for high light transmission.
Frosted – for a softer lighting effect.
Opal – for more diffused illumination and reduced visibility of individual LED points.
The integrated Slick groove allows the slide-in diffuser to be clicked into place, providing convenient access during installation and maintenance.
Dedicated UP-TILE10 end caps, available in matching colours, provide a neat finish. Both the profile and its end caps feature prepared openings for routing the power cable.

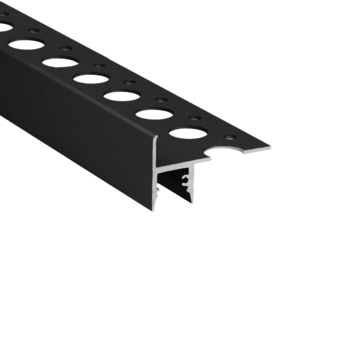

UP-TILE10 A PLUS is available in anodised and black anodised aluminium finishes, with lengths of 1000, 2000, 3000 and 4050 mm.
Combining tile-integrated installation, discreet stair edge illumination and a selection of diffuser options, UP-TILE10 A PLUS aluminium LED profile provides a functional solution for decorative staircase lighting.
