SMART-IN10 AC2/Z

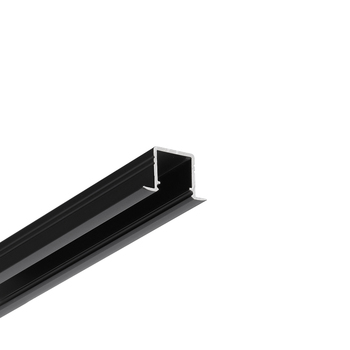

SMART-IN10 – Compact Recessed Aluminium LED Profile for Furniture Lighting

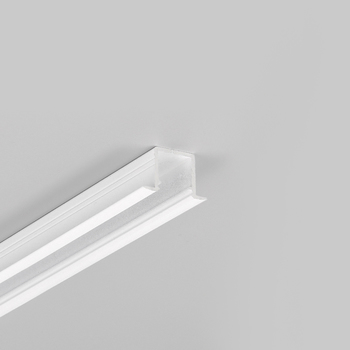

SMART-IN10 AC2/Z by TOPMET Light is a compact aluminium LED profile designed for recessed installation in furniture and interior surfaces. As part of the SMART family, it combines small dimensions with practical features for creating discreet, functional and decorative lighting.

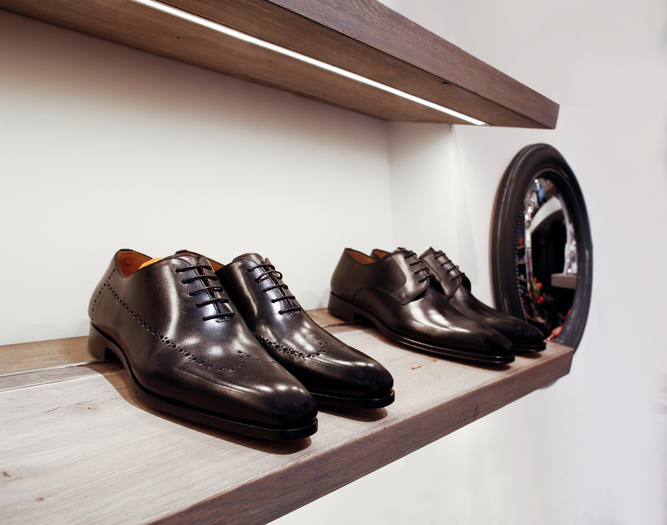

Compatible with LED strips up to 10 mm wide, SMART-IN10 is particularly suitable for shelves, cabinets, kitchen furniture and plasterboard applications.

Compact Design with a Continuous Line of Light

Despite its small size, the SMART-IN10 recessed LED profile provides sufficient depth to achieve a smooth, continuous-looking line of light when combined with a 120 LEDs/m strip and an opal diffuser.

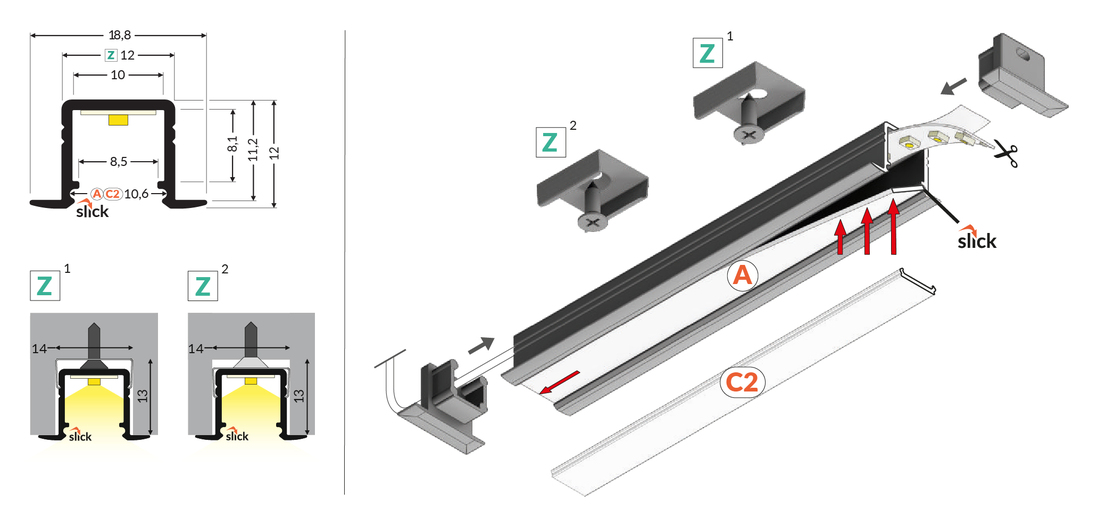

The integrated Slick groove allows the A slide-in diffuser to be clicked into place instead of being inserted from the end of the profile. This simplifies installation and removal, particularly when the profile is already recessed into furniture.

Diffusers and Mounting Accessories

SMART-IN10 supports two system diffuser types:

A slide-in diffuser – transparent (95%), frosted (90%) and opal (60%).
C2 click-in diffuser – transparent (95%), opal (70%) and black (40%).

The C2 opal and black diffusers are also available in 20-metre rolls, reducing the number of joints in longer lighting installations and helping create a more consistent visual effect.

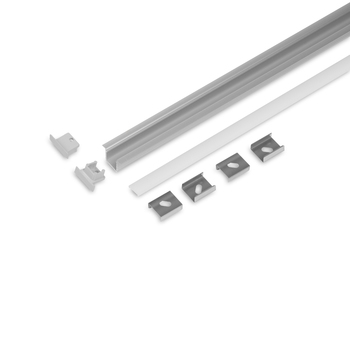

For installation, the profile is compatible with Z mounting plates, available with standard slotted or countersunk mounting holes. The mounting system allows the profile to be positioned at two different levels – directly against the mounting surface or with a small gap.

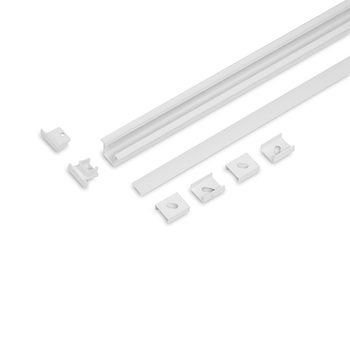

Dedicated SMART-IN10 end caps with cable holes provide a neat finish and convenient cable routing.

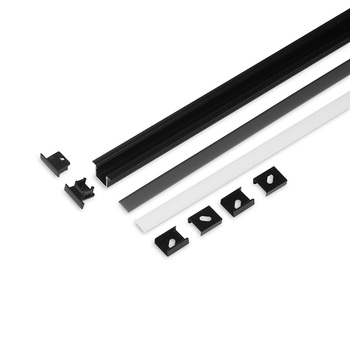

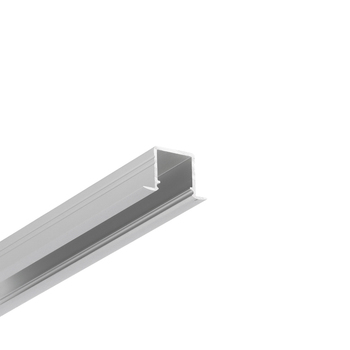

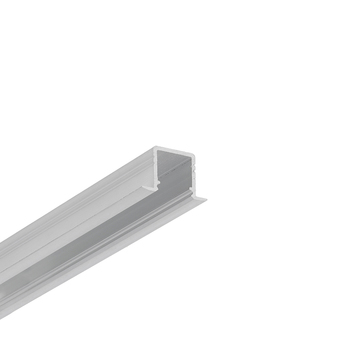

The profile is available in four finishes: raw aluminium, anodised, white painted and black anodised.

Combining compact dimensions, easy diffuser installation and flexible mounting options, SMART-IN10 aluminium LED profile is a practical solution for modern recessed furniture lighting.
