QUARTER10 BD/U6
QUARTER10 – Aluminium Corner LED Profile with a Quarter-Round Diffuser

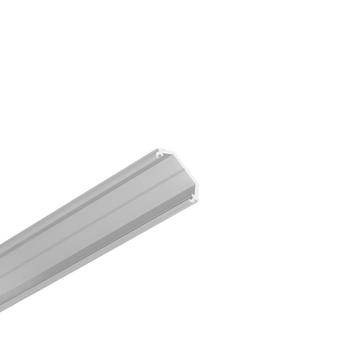

QUARTER10 BD/U6 by TOPMET Light is a compact, lightweight aluminium LED profile designed for decorative corner lighting in furniture and interior spaces. Its distinctive construction positions the LED strip at a 45° angle, providing balanced illumination from furniture corners.

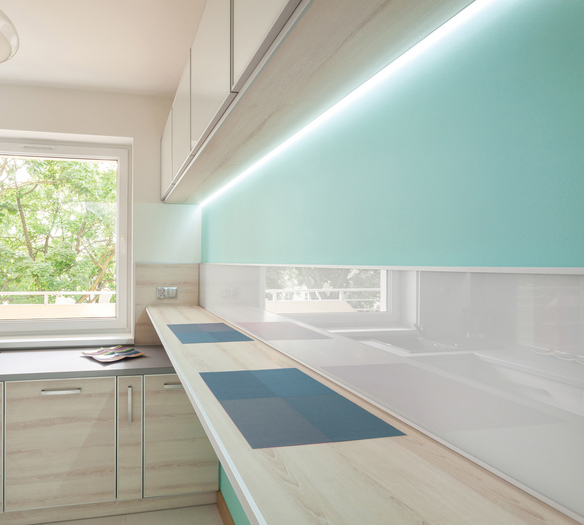

Compatible with LED strips up to 10 mm wide, QUARTER10 is particularly suitable for kitchen cabinets, shelves, wardrobes and display furniture where discreet lighting and an attractive finish are essential.
Distinctive Quarter-Round Lighting Effect

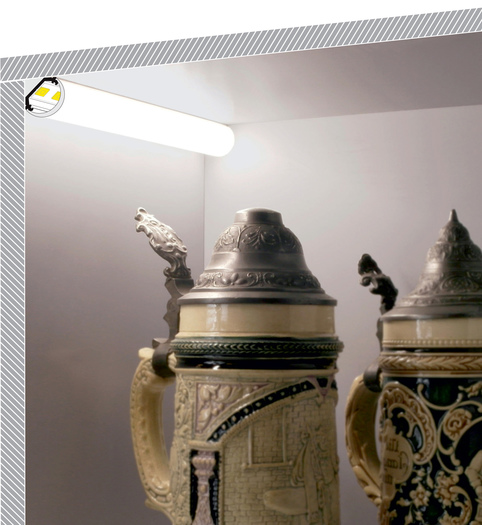

The main feature of the QUARTER10 corner LED profile is its compatibility with the rounded D click-in diffuser. When installed in a furniture corner, the diffuser creates an illuminated quarter-circle shape, giving the impression of a smooth, integrated light feature.
For a more understated appearance, QUARTER10 can also be combined with a flat slide-in diffuser.
Its compact aluminium construction makes it a practical solution for furniture manufacturers and designers looking for subtle decorative lighting.

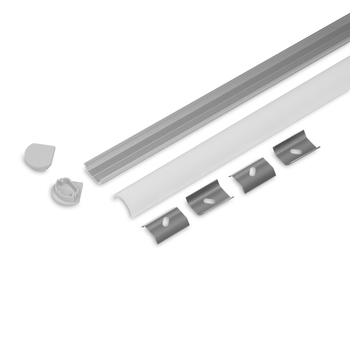

Diffusers and Mounting Accessories

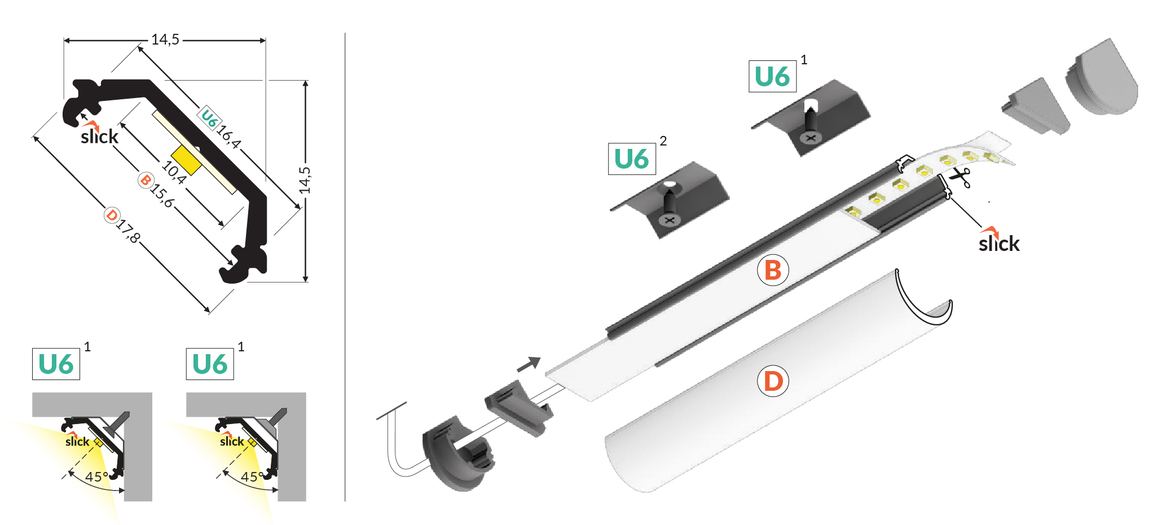

QUARTER10 supports two system diffuser types:
- D click-in diffuser – quarter-round opal version with 60% light transmission, creating a soft, diffused lighting effect.
B slide-in diffuser – available in transparent (95%), frosted (90%) and opal (60%) versions.
The profile features an integrated Slick groove, allowing the B slide-in diffuser to be clicked into place for easier installation and removal.
For mounting, QUARTER10 is compatible with two types of stainless steel mounting plates:
U6 mounting plate – allows installation with a gap between the profile and the mounting surface.
U6 cone mounting plate – enables installation directly against the mounting surface.
Dedicated QUARTER10 and QUARTER10 D end caps, available in grey and silver, provide a neat finish for the corresponding diffuser types.
The profile is available in an anodised aluminium finish, with lengths of 1000, 2000, 3000 and 4050 mm.
Combining 45° light direction, a distinctive quarter-round diffuser and practical mounting accessories, QUARTER10 aluminium LED profile offers an elegant solution for decorative furniture and corner lighting.
