Basic information
SKU: P5000200
EAN: 5901597206521
Material: aluminium
Colour: raw aluminium
Length: 2000 mm
Maximum LED width: 20 mm
Measurement unit: pcs
Quantity: 1
Collective packaging: 10 pcs
You can see the prices and make wholesale purchases after logging in
Available colours
LED profile PIXY20-01 C7/Q9U3 2000 white...
index: P5000201
You can see the prices and make wholesale purchases after logging in
LED profile PIXY20-01 C7/Q9U3 2000 anod...
index: P5000220
You can see the prices and make wholesale purchases after logging in
LED profile PIXY20-01 C7/Q9U3 2000 black...
index: P5000221
You can see the prices and make wholesale purchases after logging in
anchor
Matching elements
Complementary profile
complementary profile PIXY20-03 Q9 2000 raw...
index: P5001000
You can see the prices and make wholesale purchases after logging in

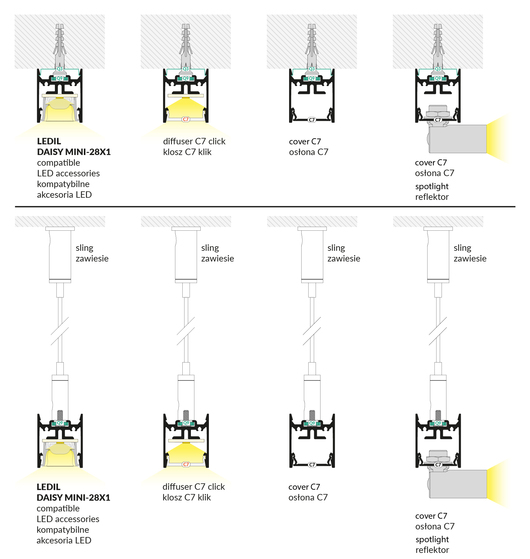

Diffusers
diffuser C7 click 2000 microprismatic
index: P5001816
You can see the prices and make wholesale purchases after logging in
diffuser C7 click 2000 opal
index: P5002238
You can see the prices and make wholesale purchases after logging in
diffuser C7 click 2000 black
index: P5002241
You can see the prices and make wholesale purchases after logging in
End caps
end cap PIXY20-01 metal white /plastic bag...
index: P5999801
You can see the prices and make wholesale purchases after logging in
end cap PIXY20-01 metal black /plastic bag...
index: P5999802
You can see the prices and make wholesale purchases after logging in
end cap PIXY20-01 metal silver /plastic bag...
index: P5999822
You can see the prices and make wholesale purchases after logging in

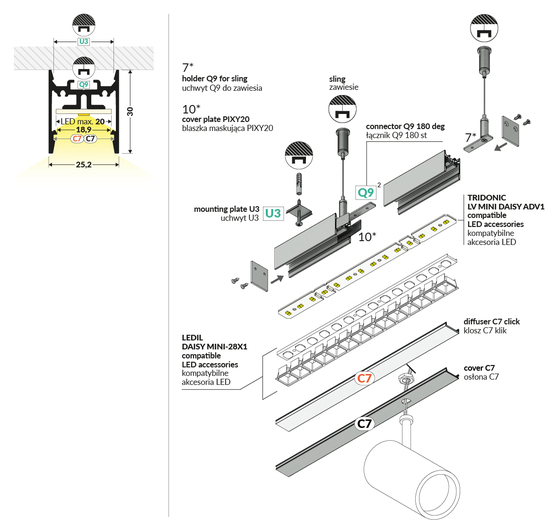

Mountings
mounting plate U3 inox [20pcs]
index: P5999719
You can see the prices and make wholesale purchases after logging in
Connectors
connector Q9-180deg /plastic bag
index: V5999819S
You can see the prices and make wholesale purchases after logging in
Other
screw for Q9 connector [20pcs]
index: V5998830
You can see the prices and make wholesale purchases after logging in
C7 aluminium cover 2000 raw alu.
index: P5001400
You can see the prices and make wholesale purchases after logging in
cover plate PIXY20 inox [2pcs]
index: P5999619
You can see the prices and make wholesale purchases after logging in
anchor
Product description
Length
2000 mm
Material
aluminium
Application
Colour
raw aluminium
Max. led width
20 mm
Maximum LED width
20 mm
Manufacturer
TOPMET
anchor
Files to download
PIXY20-01_manual
Format: pdf
